Mounted bearing units / Insert Bearing 30mm With Lock Collar CSA206

Brand Name : SN

Model Number : CSA206

Certification : ISO9001-2008/ISO14001-2004/CQC

Place of Origin : China

MOQ : 100-300

Price : negotiation

Payment Terms : T/T advance

Supply Ability : 300000 pcs/month

Delivery Time : Stock in 2 days, or 40 days

Packaging Details : Industrial packing or customize

Type : Insert bearings

Specification : CSA206

Bore size : 12-60mm (CSA201-212)

Bearing Material : Chrome steel

Housing Material : Cast iron HT200

Quality : Good, reach international standard

Contact Now

all type of ball bearings insert bearings with lock collar CSA206 ball bearings

Description:

Chrome steel insert bearings with eccentric bushing CSA206 pillow block bearings

Applications:

Ball bearings with eccentric bushing SA/UE series: the tightening force of eccentric bushing is more than that of the set screw. And it can withstand larger axial load, and is suitable for the position where exists vibration and impact load. The screw of eccentric bushing should be the same as the rotating direction of shaft, and it can be widely used in agricultural machinery.
Pillow block bearings are widely used in chemical machinery, food machinery, medical machinery, textile machinery, metallurgy, mine machinery and all kinds of driving devices.

Specifications:

Mounted bearing units / Insert Bearing 30mm With Lock Collar CSA206

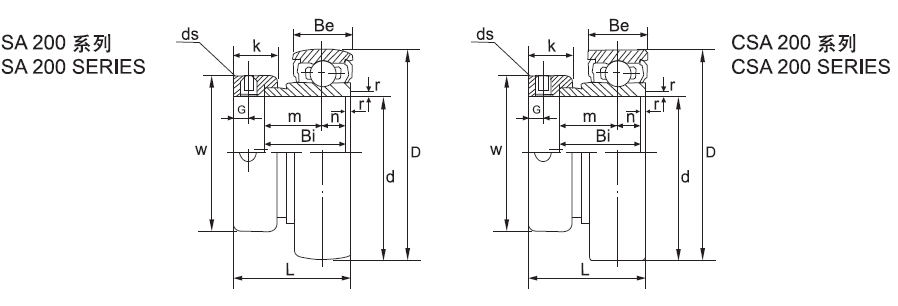

Item	d	D	Bi	Be	L	ds	Weight(kg)
CSA206	30	62	23.8	16	35.7	M8*1	0.30

Competitive Advantage:

“SN” brand insert bearings have good quality and a variety of specifications.
Pillow block bearings have the following features: automatic aligning, repeated lubrication, dustproof, seal, convenient in installation and disassembly.

Product Tags:

insert ball bearing

spherical bearings

China Mounted bearing units / Insert Bearing 30mm With Lock Collar CSA206 wholesale

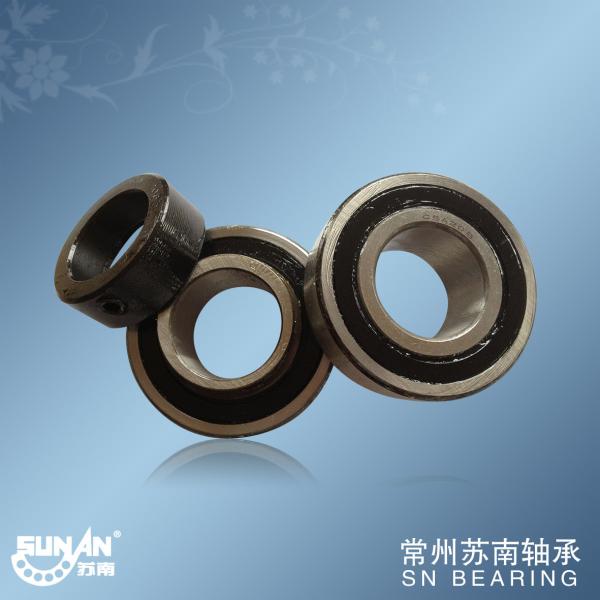

Mounted bearing units / Insert Bearing 30mm With Lock Collar CSA206 Images
