Dia 1 inch Ball Bearing Insert Bearings With Locking Collar HC205-16 UEL205-16

Brand Name : SN

Model Number : HC205-16

Certification : ISO9001-2008/ISO14001-2004/CQC

Place of Origin : China

MOQ : 100-300

Price : negotiation

Payment Terms : T/T advance

Supply Ability : 300000 pcs/month

Delivery Time : Stock in 2 days, or 40 days

Packaging Details : Industrial packing or customize

Type : Insert bearings

Specification : HC205-16

Bore size : 12-75 mm (HC201-215;HC305-315)

Bearing Material : Chrome steel

Housing Material : Cast iron HT200

Quality : Good, reach international standard

Contact Now

Dia 1 inch insert bearings with locking collar HC205-16 / UEL205-16 pillow block bearings

Description:

insert bearings with locking collar HC205-16 / UEL205-16 outer spherical bearings pillow block bearings

Applications:

Pillow block bearings with eccentric bushing HC/UEL series: the tightening force of eccentric bushing is more than that of the set screw. And it can withstand larger axial load, and is suitable for the position where exists vibration and impact load. The screw of eccentric bushing should be the same as the rotating direction of shaft, and it can be widely used in agricultural machinery.
Pillow block bearings are widely used in chemical machinery, food machinery, medical machinery, textile machinery, metallurgy, mine machinery and all kinds of driving devices.

Specifications:

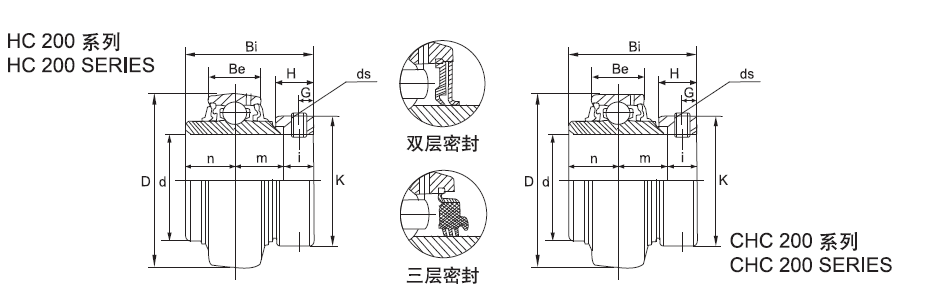

Dia 1 inch Ball Bearing Insert Bearings With Locking Collar HC205-16 UEL205-16

Item	d	D	Bi	Be	ds	Weight(kg)
HC205-13	13/16	2.0472	1.7480	0.6693	1/4-28	.0.30
HC205-14	7/8					0.30
HC205-15	15/16					0.29
HC205-16	1					0.27
HC205	25	52	44.4	17	M6*0.75	0.27

Competitive Advantage:

Our factory has abundant technical force, advanced craft equipment, completed detection means, and a sound quality assurance system, stable and reliable product quality. Each index of product reaches the international advanced level.
Pillow block bearings have the following features: automatic aligning, repeated lubrication, dustproof, seal, convenient in installation and disassembly.
